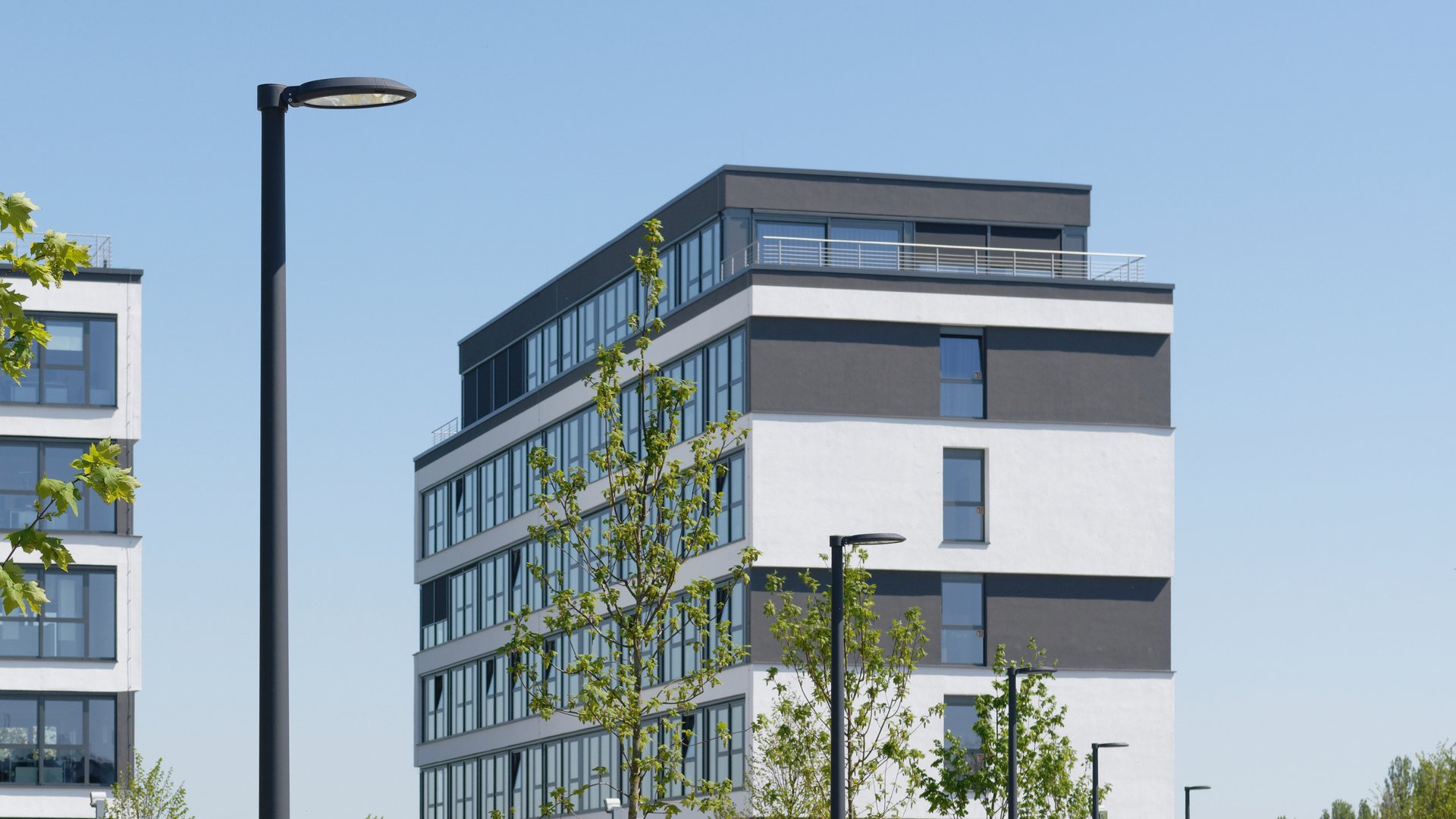

Pole-top luminaires

Asymmetrical flat beam light distribution

Luminaires with a high protection class and in safety class II whose comprehensive performance spectrum allows them to be implemented for numerous lighting applications in street, square and city illumination. The asymmetrical flat beam light distribution is particularly suitable for illuminating streets in accordance with EN 13201.

You will find more products of this type in the following series:

Dark Sky

Luminaires for natural environments

Technical data

Protection class IP 66 Safety class II BEGA Thermal Management®

Cast aluminium BEGA Unidure® coating technology Anti-glare safety glass Reflector made of pure anodised aluminium

Attack angle adjustable to 0° or 15° Can be opened without the use of tools

BEGA Ultimate Driver® · DALI-controllable BEGA Constant Optics®

These luminaires emit no light into their upper half-space

20-year availability guarantee for replacement parts and LED modules

View planning examples

Pedestrian bridge
There are many options for illuminating pedestrian bridges. Two completely different approaches are shown here. The bridge measures 20 x 2.4 m. The illumination standard DIN EN 13 201 for pedestrian walkways and cycle paths applies here. The average degree of illuminance required is 5 lx, and the minimum value is 1 lx. Pedestrians and cyclists should feel safe and therefore comfortable on the bridge. In addition, four compact floodlights emphasise the structural features of the bridge, thus increasing the striking effect they make from a distance.

Pedestrian walkway/cycle path
Pedestrians and cyclists, as well as the walkways or cycle paths, must be easy to detect visually. Good visibility of faces conveys a feeling of safety. The degree of illuminance for paths used by cyclists and pedestrians must comply with the standard DIN EN 13201-2, illumination class P4. A minimum of 1 lx is required. The average degree of illuminance is 5 lx. Pole-top luminaires with asymmetrical flat beam light distribution are used for illumination purposes. The mounting height is 5 m. The luminaire spacing is 30 m.
