The structure of BEGA Ultradark Optics®
1 Optical lenses

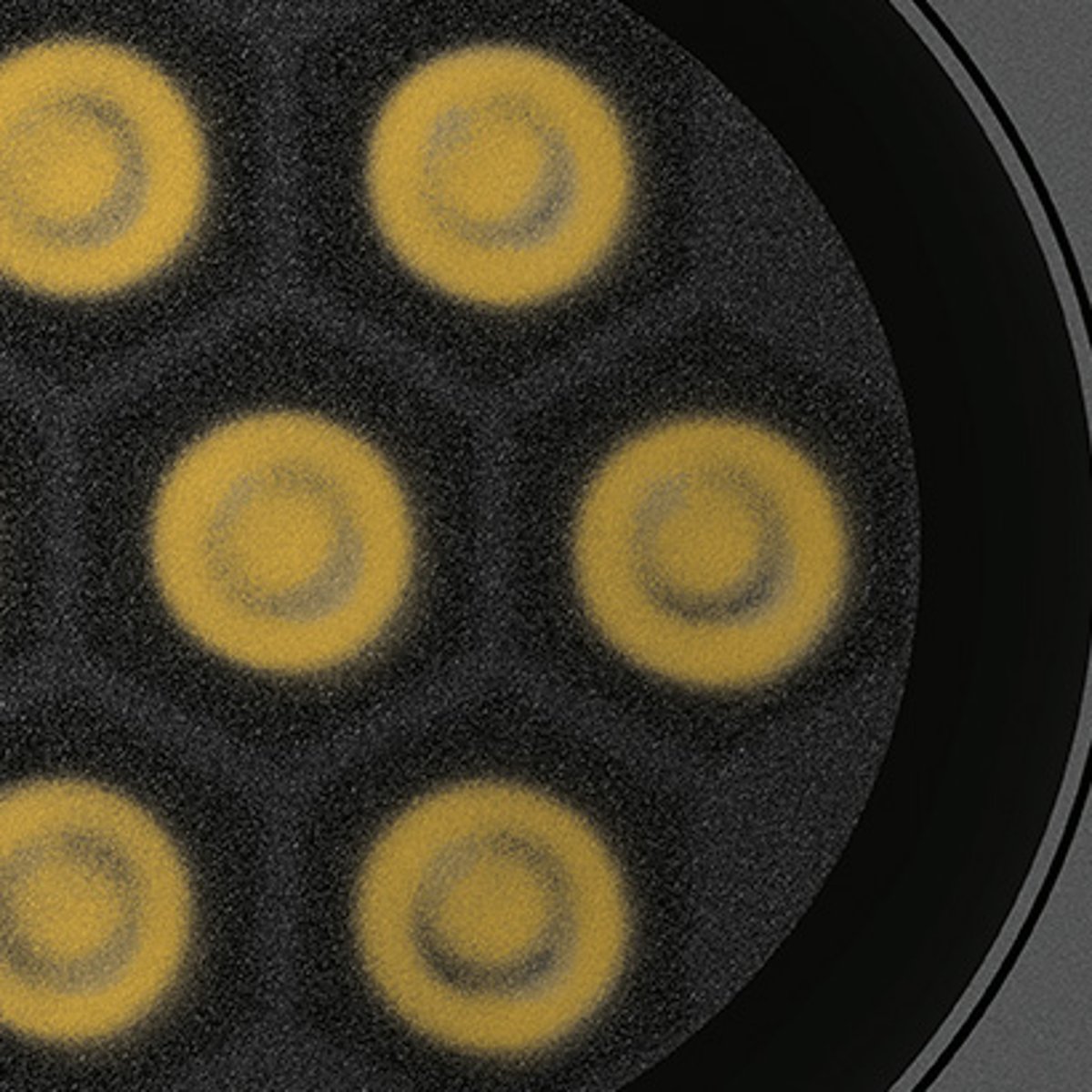

Special, proprietary optical lenses capture and direct the light generated by the LED modules. Unlike other lenses commonly available on the market, the elevated structure of these lenses ensures excellent glare suppression. The optical lenses fit the louvres and the luminaire body exactly.
2 Louvres
Internal louvres optimise the glare suppression of the optical lenses for the best possible results.
3 Nano coating
The ultra black nano coating, featuring exceptional absorption capabilities, rounds off the function of the louvres.
4 Luminaire body
The elevated structure of the luminaire body, combined with the ultra black nano coating, ensures minimised stray light. Rays of light that could create unwanted stray light are absorbed for a fully targeted illumination of the defined areas.
Homogenising diffuser lenses prevent unwanted effects like light separation zones.

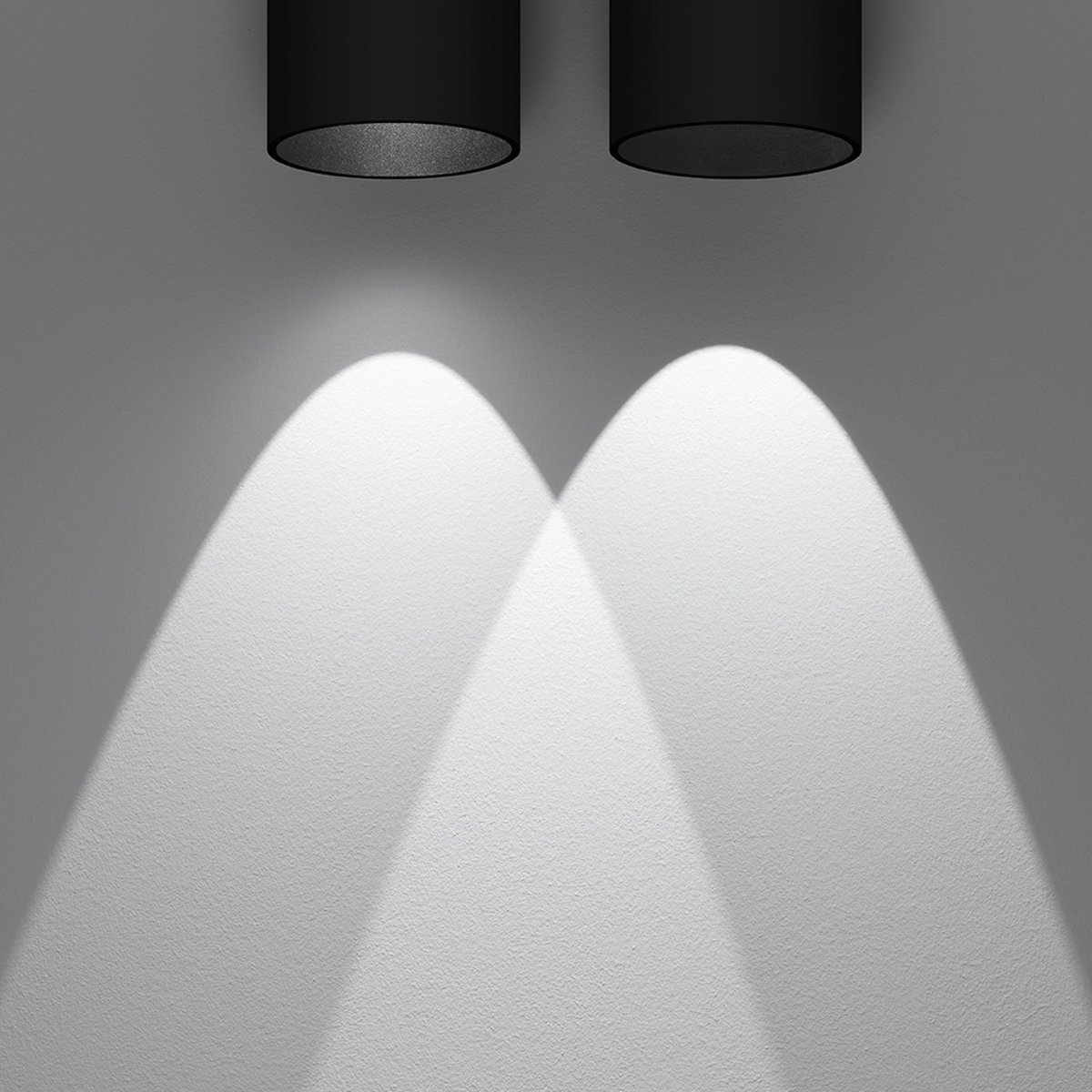

Left: Conventional black coating, right: Ultra black nano coating.
BEGA Ultradark Optics®
Light distribution

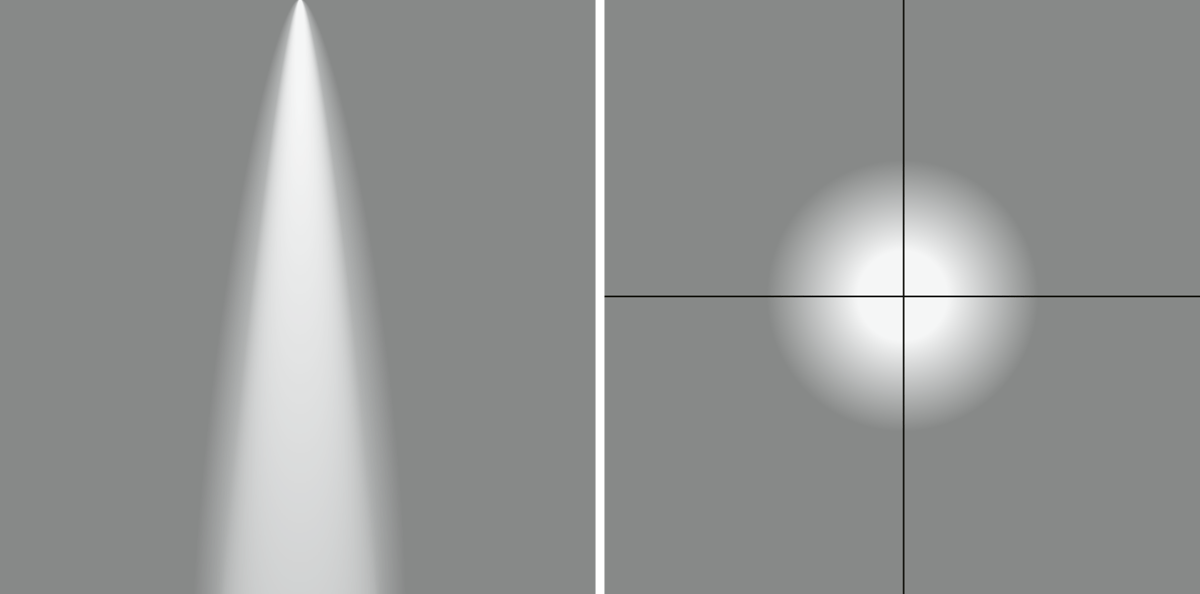

Focused narrow beam

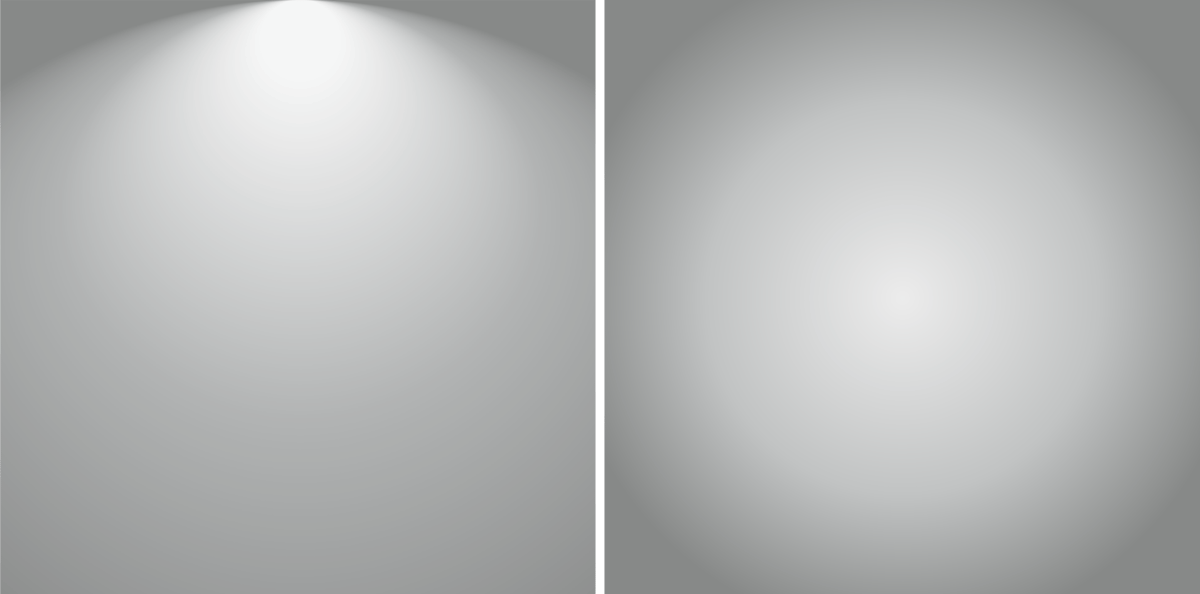

Symmetrically diffused

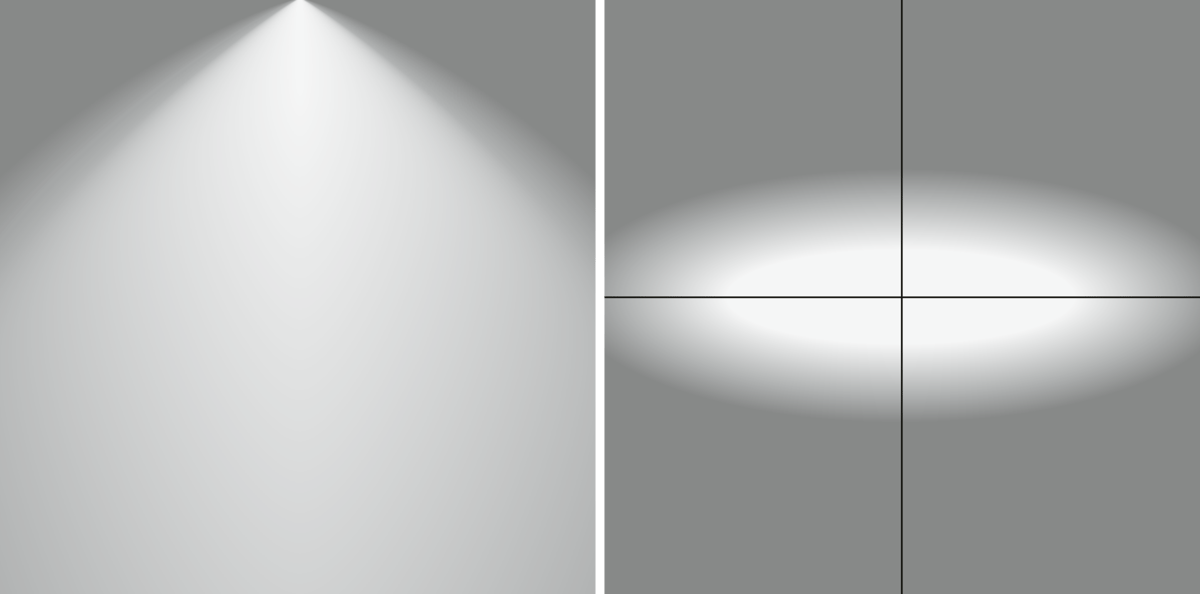

Symmetrical wide beam

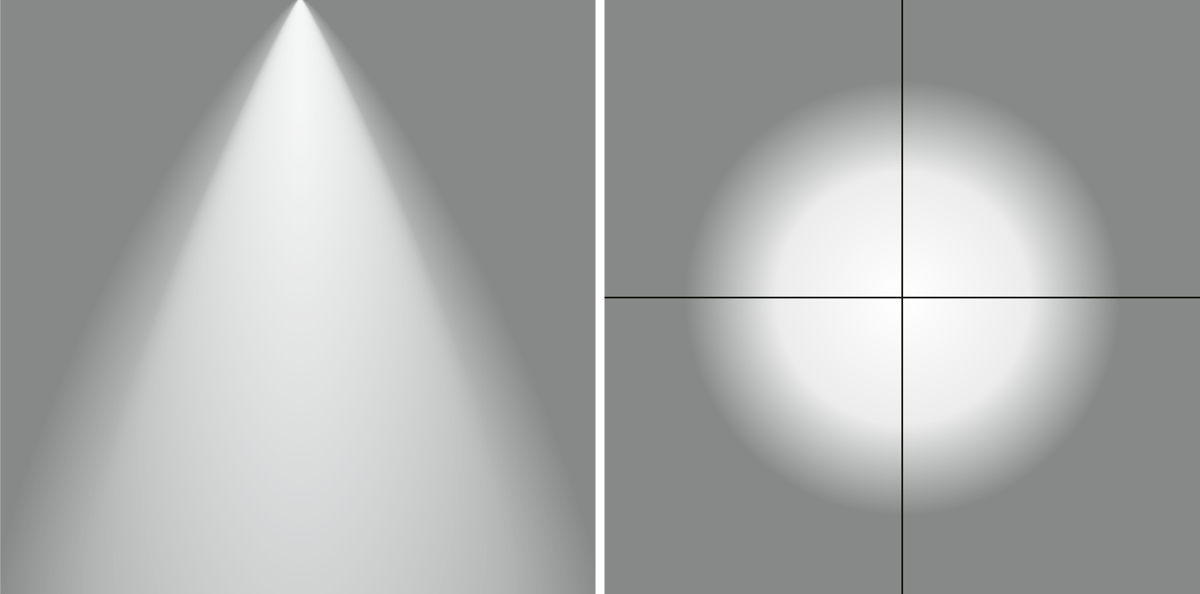

Focused very wide beam

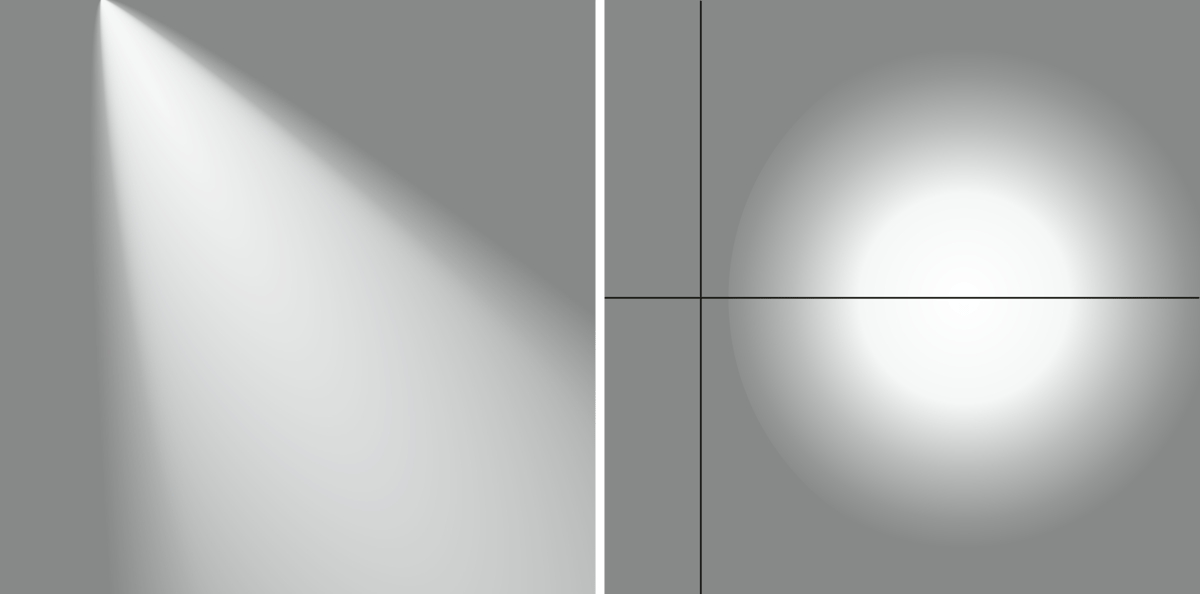

Symmetrical very wide beam
Luminaires with BEGA Ultradark Optics®

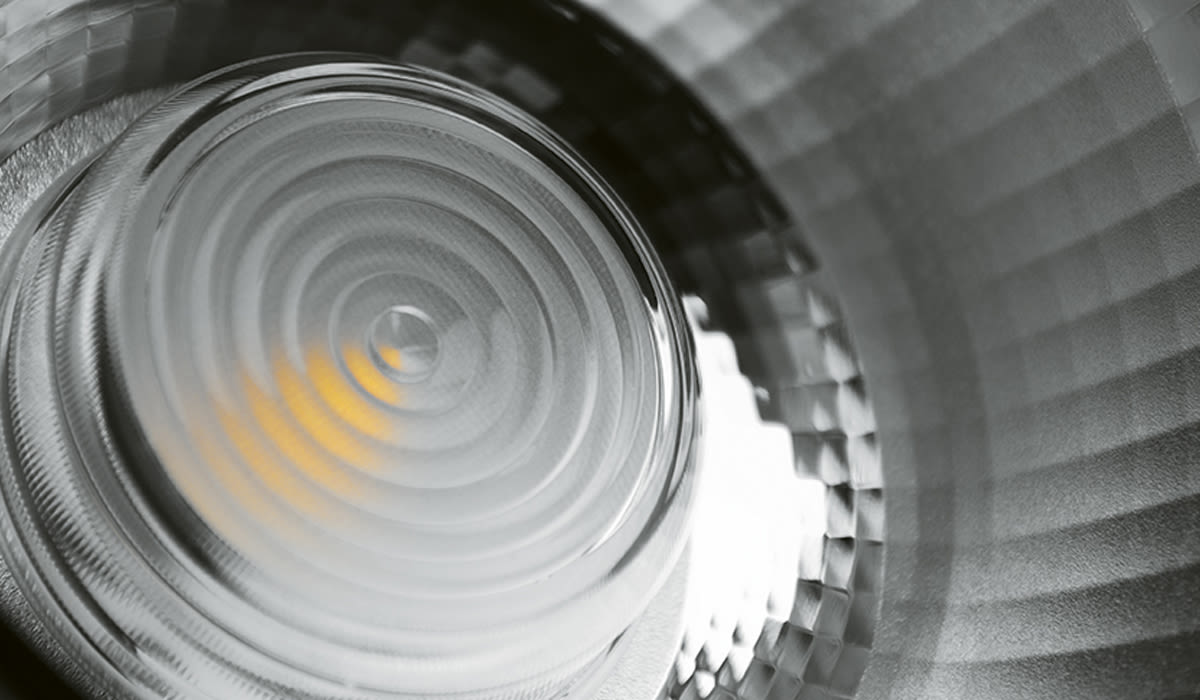

Highest photometric qualityOptical systems
Complete lighting control, perfect light deflection and the use of only extremely durable materials are the basic ingredients, with which we develop our optical systems. Not a single ray of light is lost, meaning any potential light pollution is avoided.
Overview of optical systems
